Waacab

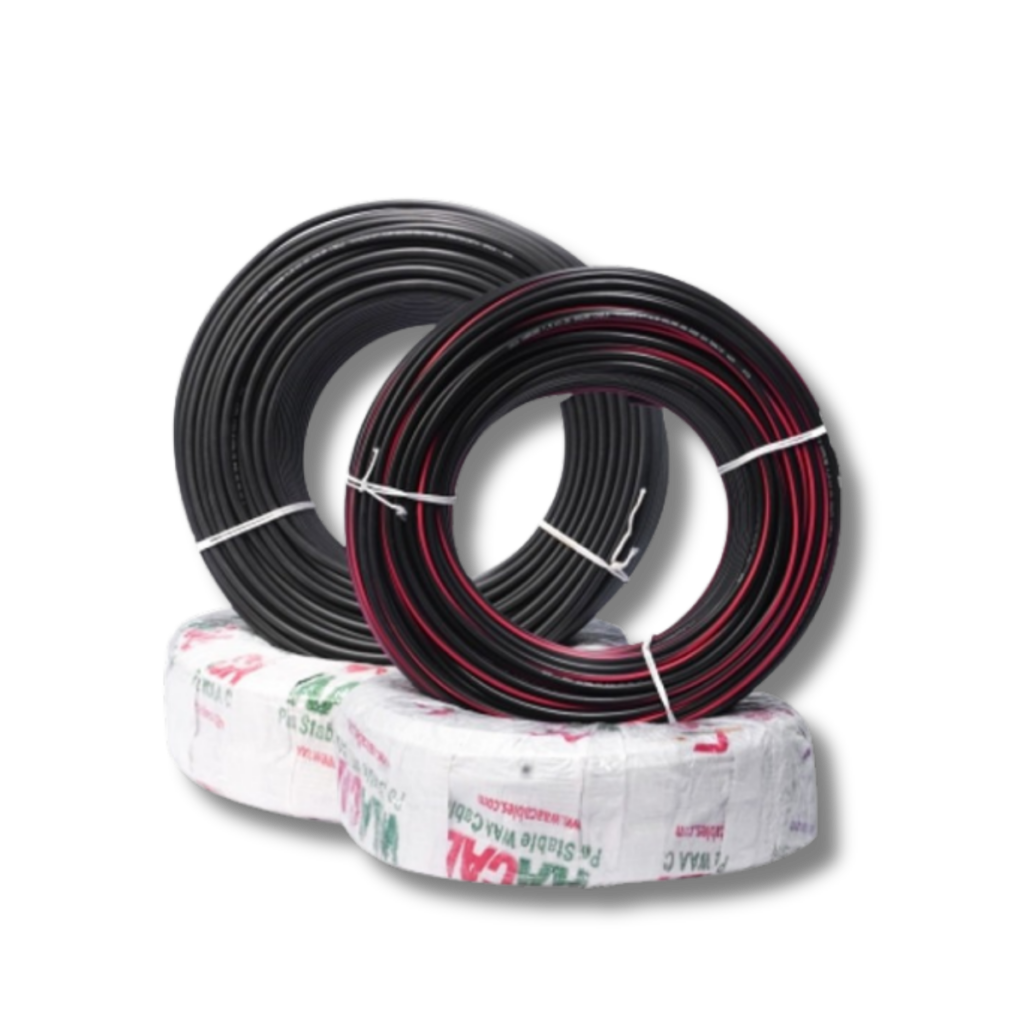

Waccab DC Cable 4 Sq mm
Product specs:
Waccab 4 Sqmm DC Solar Cable, compliant with IEC 60228 and EN 50618, ensures safe and reliable power transmission in solar PV systems.
Technical specs:
- SKU: SDCR 1 CORE X 4 SQMM BLACK
- Weight: 6.00 KGS
- Conductor Material: Copper
- Ideal For: Solar System
- Packaging Type: Roll
Waccab DC Cable 6 Sq mm
Product specs:
The Waccab 6 Sqmm DC Solar Cable is a high-performance, UV-resistant cable designed for efficient power transmission in solar PV systems up to 1500V DC, ensuring durability, flexibility, and long-term reliability.
Technical specs:
- Packaging Type: Roll
- Weight: 8.00 KGS
- SKU: SDCR 1 CORE X 6 SQMM BLACK
- Ideal For: Solar System
- Conductor Material: Copper

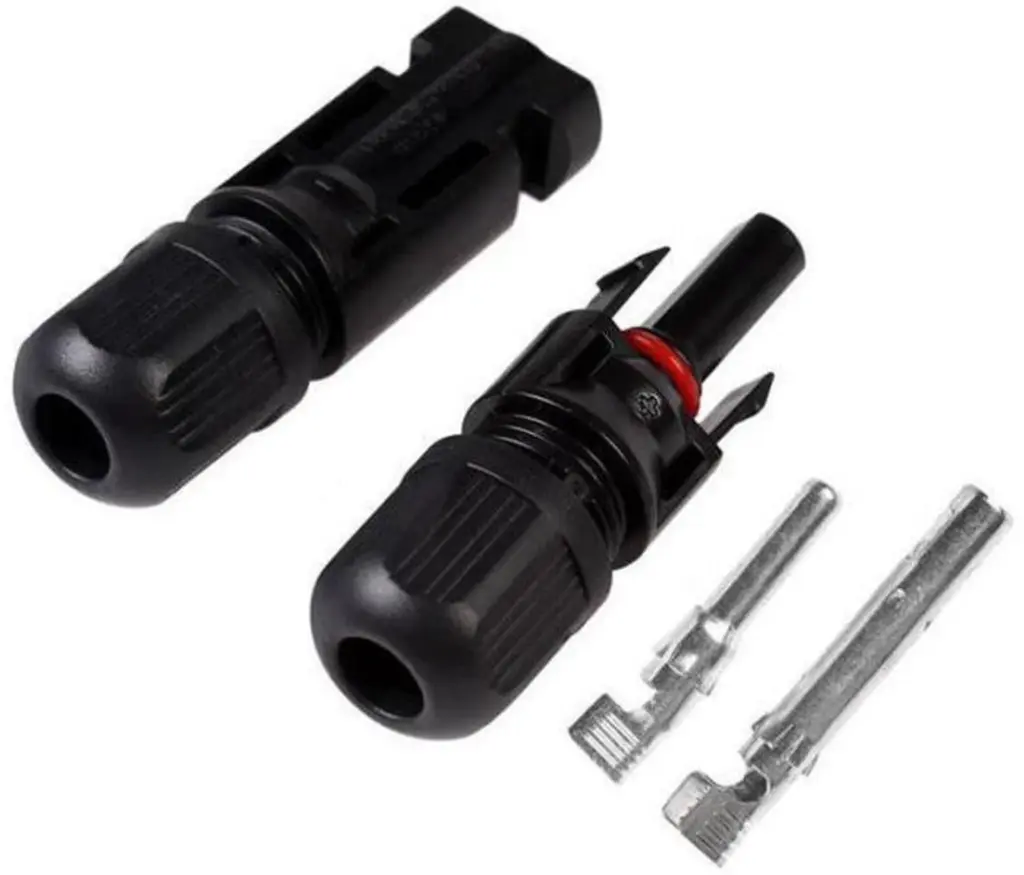

Waccab MC4 Solar Connector
Product specs:
The Waccab MC4 Connector is a high-quality DC connector designed for secure and efficient connections in solar PV systems, offering excellent durability, weather resistance, and long-term performance.
Technical specs:
- Copper with Tin Plated
- 30 A
- 1500 V DC
- IP68

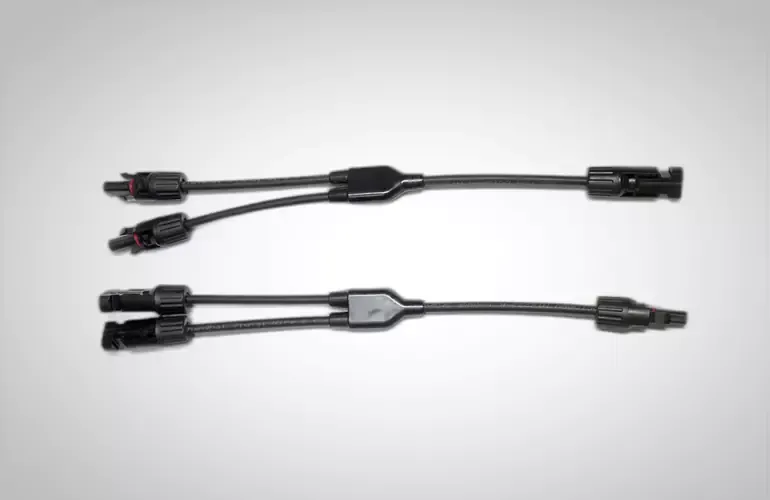

Waccab Solar MC4 Y Connector (LQ-1Y)
Product specs:
The Waccab MC4 Y Connector (LQ-1Y) is a reliable DC connector designed for parallel connection of solar panels, ensuring secure, weatherproof, and efficient performance in solar PV systems.
Technical specs:
- Rated Voltage: 1000V / 1500V DC for high-performance solar PV systems
- Rated Current: 30A–45A (suitable for 4mm² / 6mm² solar cables)
- Protection Rating: IP67 waterproof & dustproof (in mated condition)
- Material: Tinned copper contacts with UV-resistant PPO insulation
- Application: Used for parallel connection of solar panels (MC4 compatible)

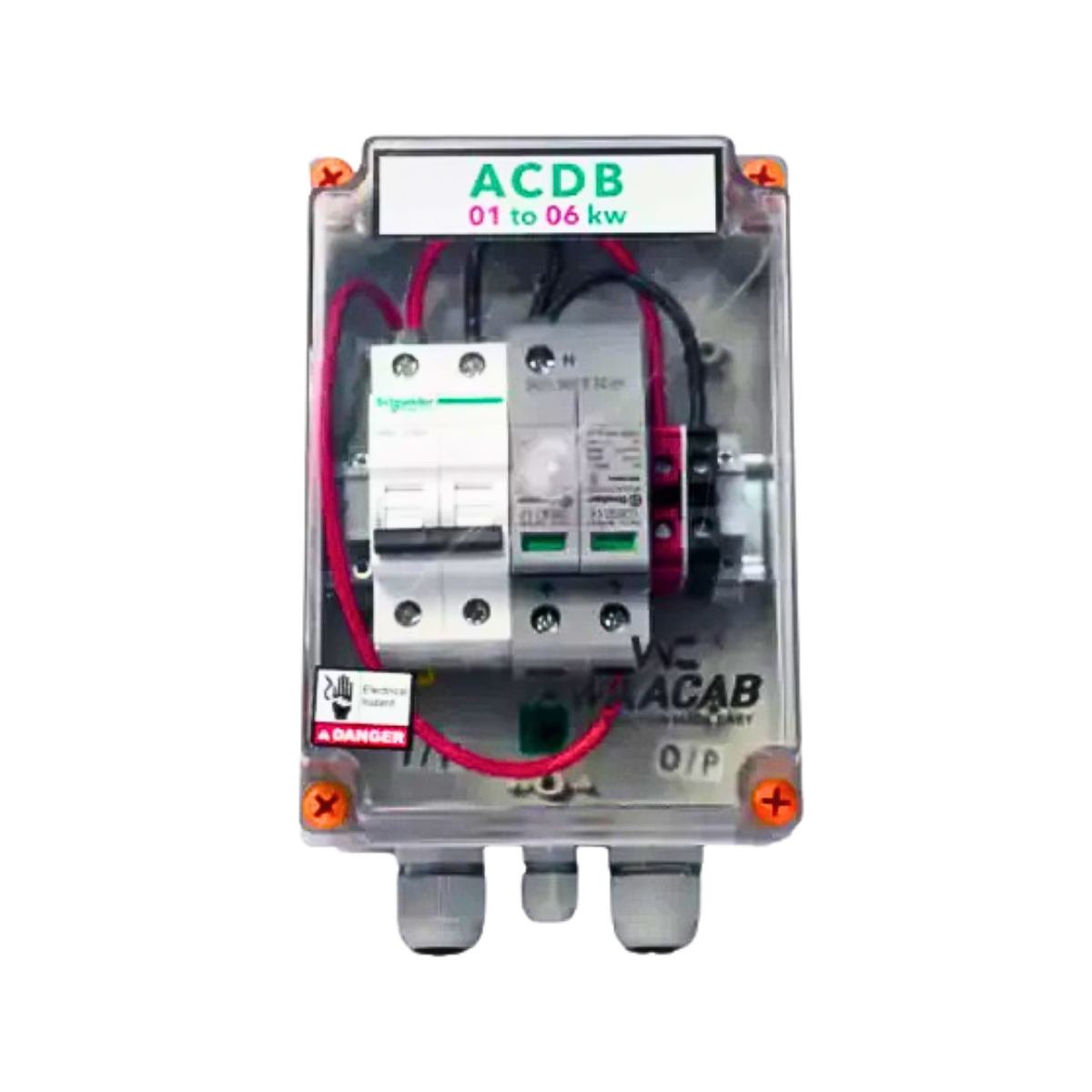

ACDB 1ph 32A 1In 1Out
Product specs:
The ACDB 1Ph 32A (1 In 1 Out) is a compact and reliable AC distribution box designed for solar PV systems, ensuring safe power distribution and protection between inverter and load.
Technical specs:
- AC Distribution Box for 1 KW- 5 KW solar project
- 1ph 230 Volt
- MCB: 25 A, 2 Pole
- SPD Rating: Phase 335V, Neutral 260VAc
- Box Size: 180X130X100mm (IP 65/66)
- AC Cable – 4 Sqmm
- Terminal Connector – 6 Sqmm – 41A
- With Red Phase Indicator
ACDB 3ph 32A 1In 1Out
Product specs:
The ACDB 3Ph 32A (1 In 1 Out) is a robust AC distribution box designed for three-phase solar systems, providing safe power distribution and protection between the inverter and load.
Technical specs:
- AC Distribution Box for 4 KW- 12 KW solar project
- 3ph 415-440 Volt
- MCB: 32 A, 4 Pole
- SPD Rating: Phase 335V, Neutral 260VAc
- Box Size: 220X190X100 mm (IP 65/66)
- AC Cable – 6 Sqmm
- Terminal Connector – 16 Sqmm – 75A
- With R-Y-B Phase Indicator

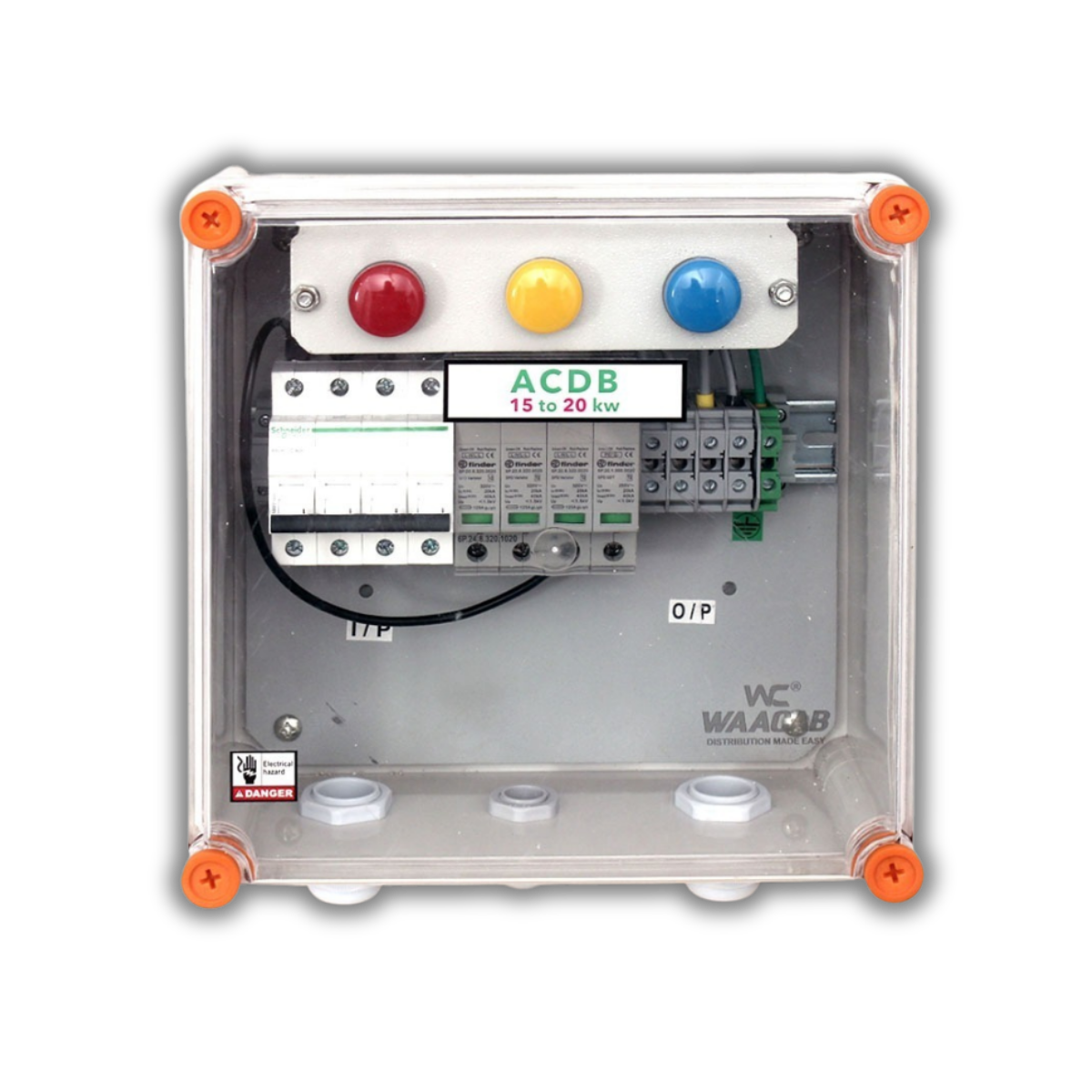

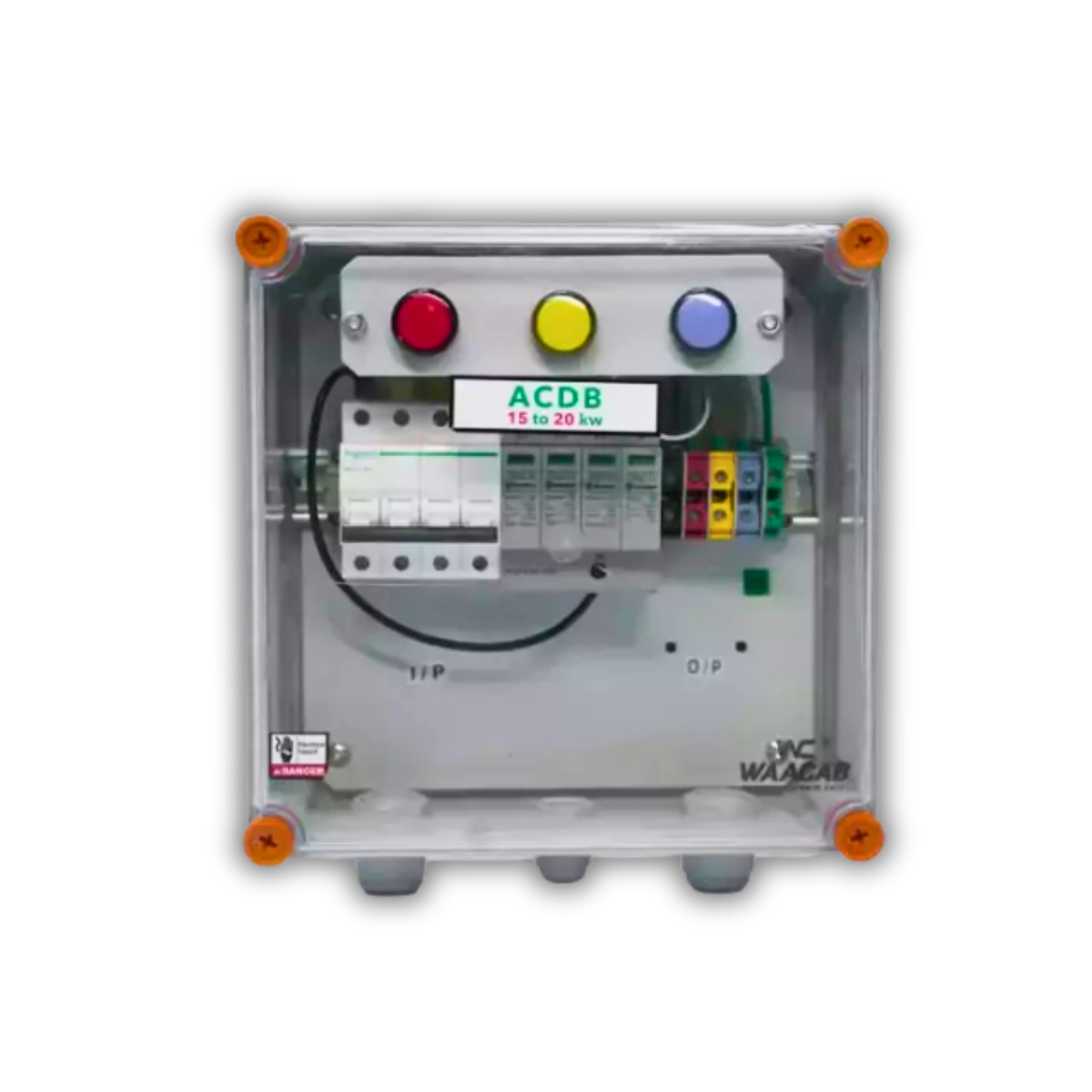

ACDB 3ph 40A 1In 1Out
Product specs:
The ACDB 3Ph 40A (1 In 1 Out) is a durable and efficient AC distribution box designed for three-phase solar systems, ensuring safe power distribution and reliable protection between inverter and load.
Technical specs:
- AC Distribution Box for 15 KW- 20 KW solar project
- 3ph 415-440 Volt
- MCB: 40 A, 4 Pole
- SPD Rating: Phase 335V, Neutral 260VAc
- Box Size: 280X190X130 mm (IP 65/66)
- AC Cable – 10 Sqmm
- Terminal Connector – 16 Sqmm – 75A
- With R-Y-B Phase Indicator
ACDB 3ph 63A 1In 1Out
Product specs:
The ACDB 3Ph 63A (1 In 1 Out) is a high-capacity AC distribution box designed for three-phase solar systems, ensuring safe power distribution and reliable protection between inverter and load.
Technical specs:
- AC Distribution Box for 20 KW- 25 KW solar project
- 3ph 415-440 Volt
- MCB: 63 A, 4 Pole
- SPD Rating: Phase 335V, Neutral 260VAc
- Box Size: 280X280X130 mm (IP 65/66)
- AC Cable – 10 Sqmm
- Terminal Connector – 16 Sqmm - 75A
- With R-Y-B Phase Indicator

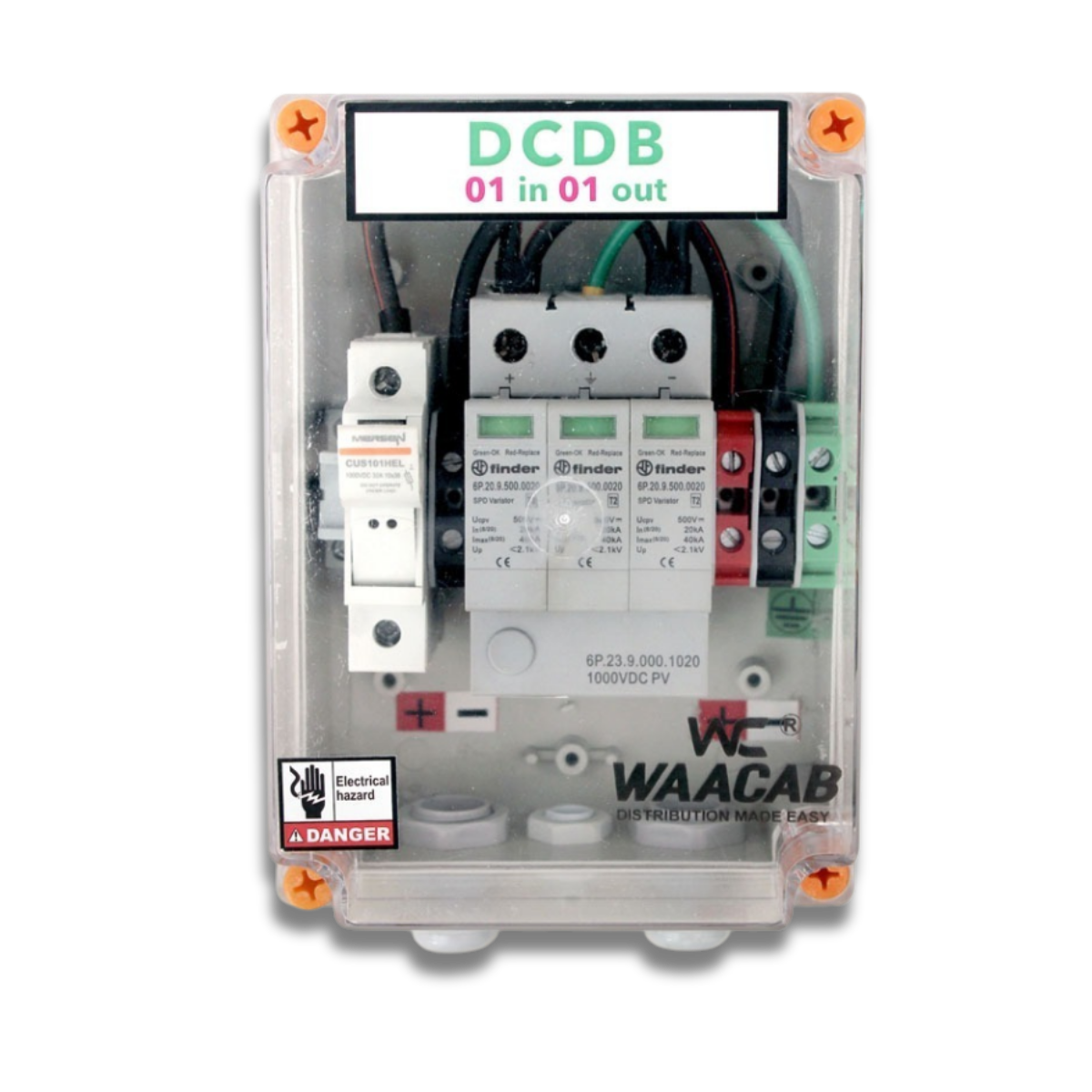

DCDB 1 In 1 Out 1 Spd 1000v
Product specs:
The DCDB 1 In 1 Out (1000V, 1 SPD) is a reliable DC distribution box designed for solar PV systems, providing safe power management and surge protection between solar panels and inverter.
Technical specs:
- DC Distribution Box for 1Kw - 3KW solar project
- 1 In 1 Out
- 1 SPD: 1000V
- DC Fuse Link – 15A
- DC Fuse Holder - 30A
- Box Size: 180X130X100 (IP 65/66)
- DC Cable: 4 sq mm
DCDB 1 In 1 Out 1 Spd 600v
Product specs:
The DCDB 1 In 1 Out (600V, 1 SPD) is a compact and reliable DC distribution box designed for solar PV systems, ensuring safe power flow and protection against surges between panels and inverter.
Technical specs:
- DC Distribution Box suitable for 1kW to 5kW solar systems
- 1 In 1 Out
- 1 SPD: 600V
- DC Fuse Link – 15A
- DC Fuse Holder - 30A
- Enclosure Size: 180 × 130 × 100 mm
- DC Cable: 4 sq mm
DCDB 2 In 2 Out 2 Spd 1000v
Product specs:
The DCDB 2 In 2 Out (1000V, 2 SPD) ensures safe and reliable power distribution with built-in surge protection for solar PV systems.
Technical specs:
- DC Distribution Box for 4Kw - 12KW solar project
- 2 In 2 Out
- 2 SPDs: 1000V
- DC Fuse Link – 15A
- DC Fuse Holder - 30A
- Box Size: – 220X190X100 (IP 65/66)
- DC Cable: 4 sq mm
DCDB 2 In 2 Out 1 Spd 1000v
Product specs:
The DCDB 2 In 2 Out (1000V, 1 SPD) ensures safe and efficient power distribution with built-in surge protection for solar PV systems.
Technical specs:
- DC Distribution Box for 4Kw - 12KW solar project
- 2 In 2 Out
- 2 SPDs: 1000V
- DC Fuse Link – 15A
- DC Fuse Holder - 30A
- Box Size: – 220X190X100 (IP 65/66)
- DC Cable: 4 sq mm

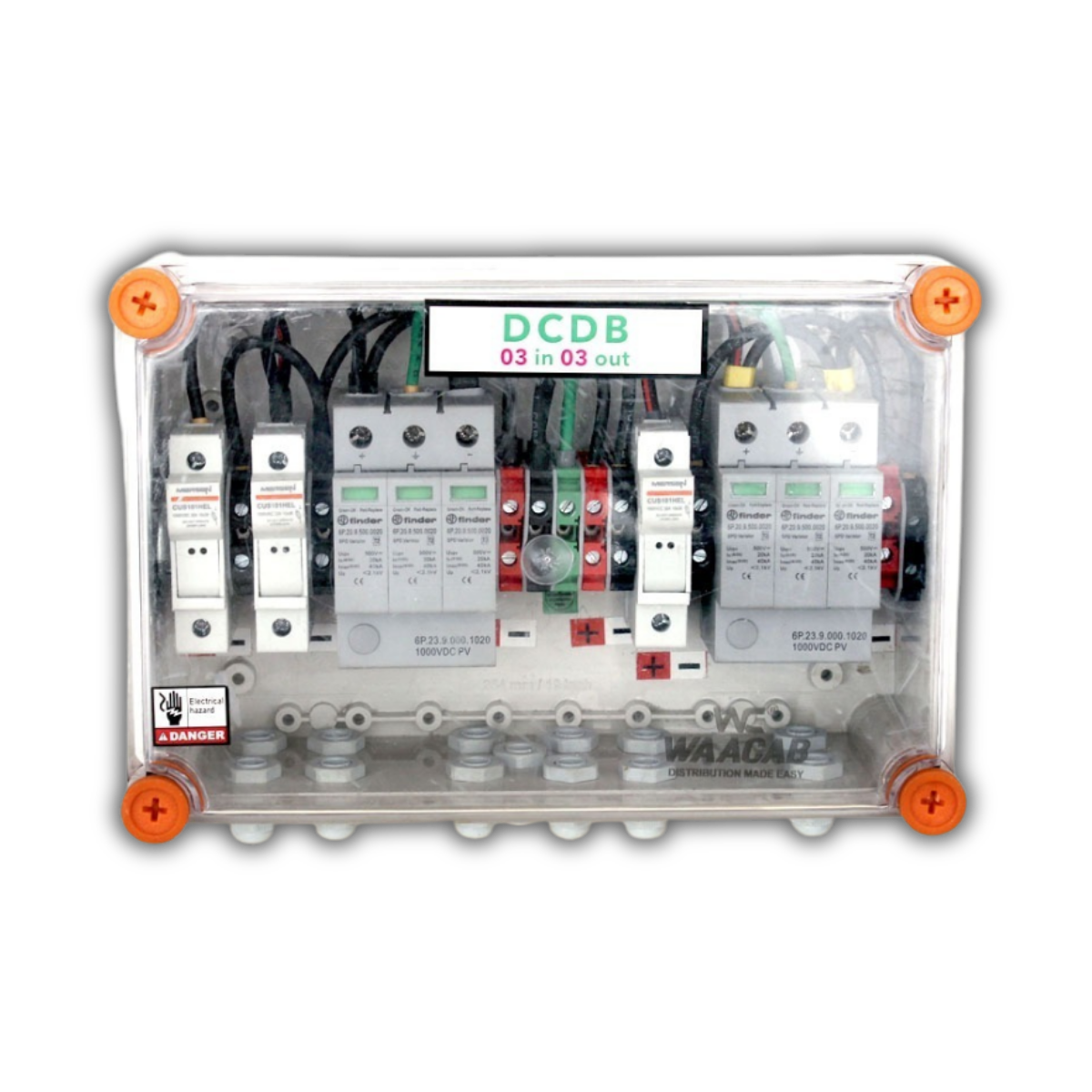

DCDB 3 In 3 Out 3 Spd 1000v
Product specs:
The DCDB 3 In 3 Out (1000V, 3 SPD) ensures safe and reliable power distribution with enhanced surge protection for solar PV systems.
Technical specs:
- DC Distribution Box for 12Kw - 17KW solar project
- 3 In 3 Out
- 3 SPDs: 1000V
- DC Fuse Link – 15A
- DC Fuse Holder- 30A
- List Box Size: – 280X280X130(IP 65/66)
- DC Cable: 4 sq mm
DCDB 3 In 3 Out 2 Spd 1000v
Product specs:
The DCDB 3 In 3 Out (1000V, 2 SPD) provides safe and efficient power distribution with reliable surge protection for solar PV systems.
Technical specs:
- DC Distribution Box for 12Kw - 17KW solar project
- 3 In 3 Out
- 2 SPDs: 1000V
- DC Fuse Link – 15A
- DC Fuse Holder - 30A
- Box Size: – 280X280X130(IP 65/66)
- DC Cable: 4 sq mm

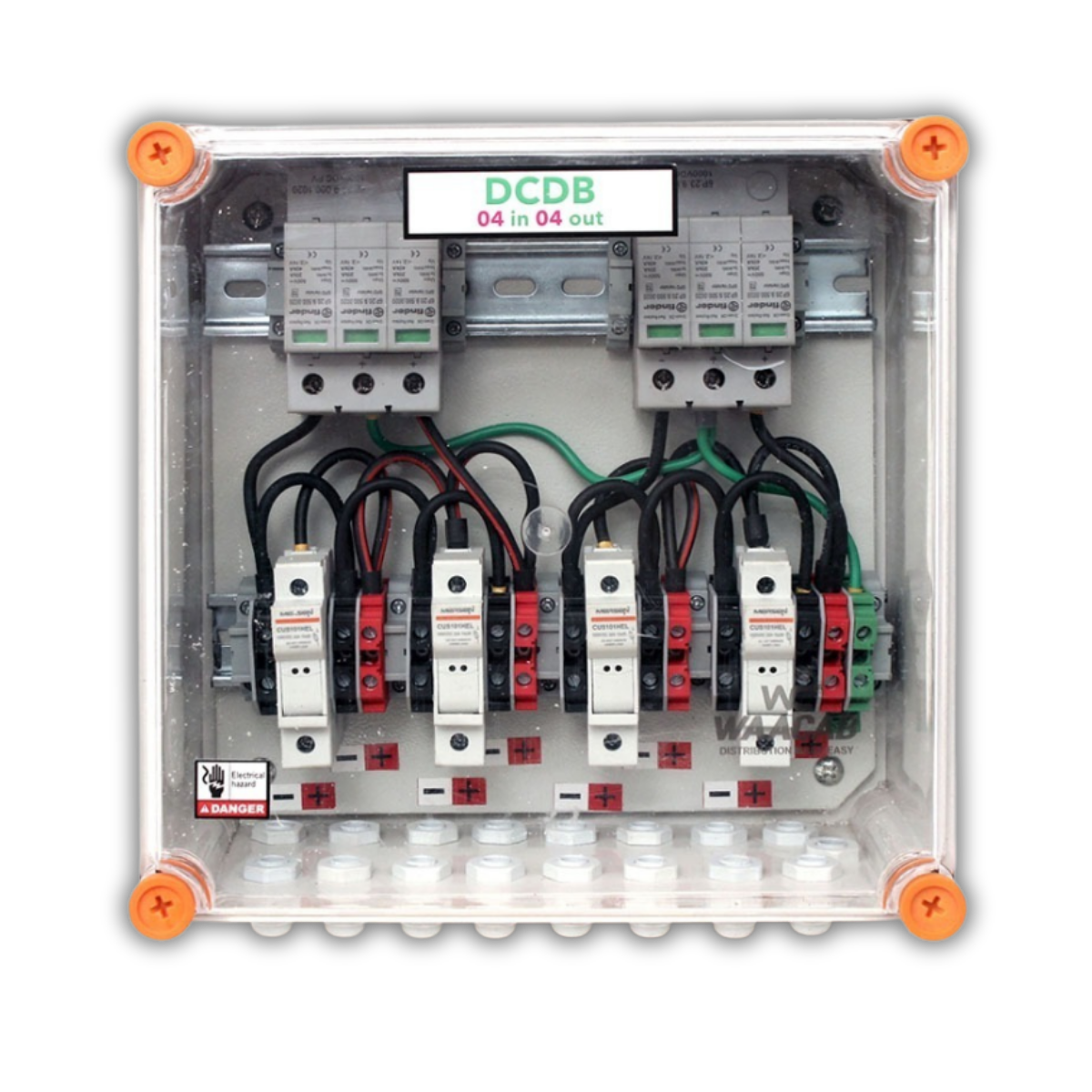

DCDB 4 In 4 Out 4 Spd 1000v
Product specs:
The DCDB 4 In 4 Out (1000V, 4 SPD) ensures safe and efficient power distribution with advanced surge protection for large-scale solar PV systems.
Technical specs:
- DC Distribution Box for 20Kw - 25KW solar project
- 4 In 4 Out
- 4 SPDs: 1000V
- DC Fuse Link – 15A
- DC Fuse Holder - 30A
- Box Size: – 280X280X130(IP 65/66)
- DC Cable: 4 sq mm
DCDB 4 In 4 Out 2 Spd 1000v
Product specs:
The DCDB 4 In 4 Out (1000V, 2 SPD) provides safe and efficient power distribution with reliable surge protection for solar PV systems.
Technical specs:
- DC Distribution Box for 20Kw - 25KW solar project
- 4 In 4 Out
- 2 SPDs: 1000V
- DC Fuse Link – 15A
- DC Fuse Holder - 30A
- Box Size: – 280X280X130(IP 65/66)
- DC Cable: 4 sq mm
